Multilingual Hybrid Meetings at OECD — AV.technology

OECD Trusts Audinate’s Dante to Ensure that Safe, Multilingual Conferencing Continues During COVID-19; Audio Managed and Kept Safe

By

May 18, 2021

The Organisation for Economic Co-operation and Development (OECD), based in Paris, France, is an international organisation made up of 37 Member Countries that works to build better policies for better lives. More than 1,000 conferences are organised annually in the OECD conference centres (La Muette and Boulogne), including around thirty conferences and major events. The OECD Conference Centre offers 3,000 square meters of modern and modular conference rooms and a range of facilities.

Currently, OECD manages around 250 daily web conferences. Most high-level meetings offer interpretation in at least both official languages ​​of the OECD and rely on collaboration, meaning interactions are dynamic amongst participants.

Audio visual services (audio, video and web conferencing) have been used for several years in OECD, but with the significant increase in remote participation requests in recent months, and the massive virtualisation of OECD events, communication needs have evolved. Today, many meetings take place in a virtual (remote participants) or hybrid (presence of participants simultaneously on site and remotely) fashion.

In this context, the audiovisual department had to quickly adapt and rethink its strategy, in particular by adapting its digital infrastructure to new interpretation flows.

Trusting Dante to get the job done

“We had used Dante before the pandemic, but only for a few implementations,” Guillaume Carlier, Head of the Technical Audiovisual Support Unit at the OECD explained, “However we knew it was a powerful and flexible option. When the crisis happened, we saw a major change to the way we had traditionally held meetings, and turned towards Dante based on our previous experience.”

The needs of the OECD are overall unique – yet its Dante setup is elegant in how it streamlines the complexity of its work. An example to highlight this: a meeting at the OECD can actually be held in a myriad of different languages. This requires real-time Interpretation services to be routed out appropriately to the correct participants’ linguistic needs, and brings OECD to a total of 47 interpretation booths that can be operational at any given time.

To do this, a team of interpreters work on-site to interpret the meeting. As their audio comes into the video conferencing platform used by the OECD the signals of interpreted audio are placed into the system over microphones connected to a Harris Communications Platinum MX Routing Matrix. The matrix sends the signals to either a Focusrite RedNet D64R MADI-Dante Bridge or a Focusrite RedNet D16 AES-Dante Bridge. From there, the interpretation is all Dante-native signals.

To use the audio in the video conferencing software, the signals are routed to Dante AVIO adapters connected to PCs, converting Dante digital to USB. AVIO-connected PCs are used to supply audio into the remote meetings. In addition to this the OECD also uses several Dante-enabled Allen & Heath AHM64 matrix processors to process all of its audio signals.

“We use one AVIO per language, it could be English, French, Spanish, Chinese, and we connect the language directly to the PC running the video conference tool.” comments Carlier.  “From there, the audio is embedded in the video conference. This means we meet the criteria for our meeting language requirements.”

Carlier explained that when meeting participants are on-site, they can also send the Dante signals across the network to the relevant meeting rooms and out through their infrared audio-conferencing system.

“Really, we can send it anywhere and to any system,” he said. “All you have to do is have someone sending the right language to the right location.”

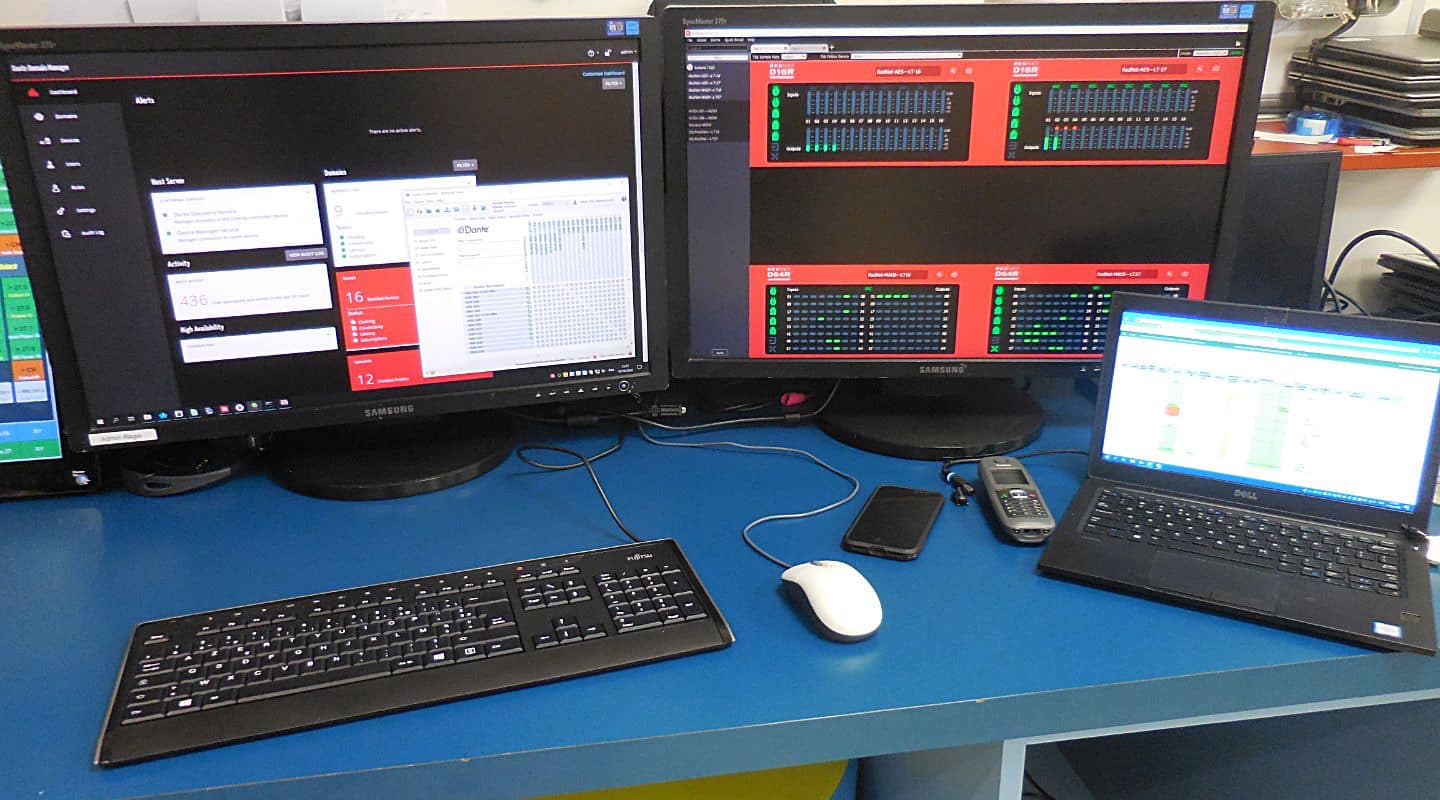

Monitoring with Dante Domain Manager

To manage all of these signals effectively, the OECD uses the Dante Domain Manager network management software that enables user authentication, role-based security, and audit capabilities for Dante networks – all while allowing a smooth expansion of Dante systems over any network infrastructure.

Emmanuel Renoul, Technical Audiovisual Support at the OECD, emphasised that “because of how we work and what we do, we need strong monitoring and control systems, especially with our audio networking. We need to know where our signals are going and control who has access to them. Dante Domain Manager provides us with just that. We knew this when we discovered that Dante Domain Manager allowed our audio to cross subnets. With Dante Domain Manager, networks are easily managed and kept neat and tidy.”

The Dante system went fully live in September 2020 and multiple meetings with live interpretation have now been held effectively and efficiently.

“At the beginning of this pandemic we knew it was going to be the right choice to move to Dante,” Carlier said. “The interpreters are working just as they normally do and the meetings are working efficiently. The OECD can continue working toward its goals.”

Audinate: audinate.com
